How Does a Surround View Monitor Work?
Surround View Monitor Technology
Modern vehicles increasingly feature surround view monitors, sometimes called 360-degree camera systems, to give drivers a complete picture of what's happening around their car. These innovative setups rely on several wide-angle cameras placed at key points around the vehicle. When working together, these cameras eliminate blind spots and create a seamless view that helps tremendously with parking and low-speed maneuvers.
What makes these systems truly impressive is how they merge multiple camera feeds using complex image stitching software, creating a virtual top-down perspective that would be impossible to see naturally. This bird's-eye view proves particularly valuable when squeezing into tight parking spots or navigating through crowded urban areas where visibility might be limited.
Camera Placement and Functionality
The effectiveness of any surround view system depends entirely on proper camera positioning. Automakers typically install these cameras in the front grille, beneath the side mirrors, and near the rear license plate. Each camera captures a different angle, with sophisticated software then combining these perspectives into one coherent image displayed on the dashboard screen.
Modern systems use specially designed cameras with exceptional light sensitivity, allowing them to function well even at night or in poor weather conditions. This reliable performance gives drivers confidence when backing up or maneuvering in challenging environments where every inch matters.
Display and User Interface

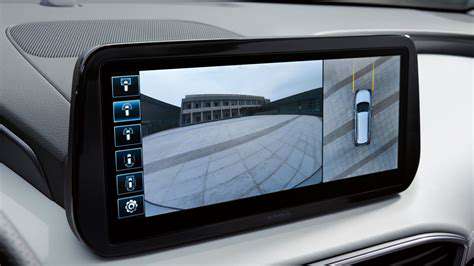

You'll typically access the surround view system through your car's central touchscreen display. Manufacturers design these interfaces to be as intuitive as possible, recognizing that drivers need to process visual information quickly while operating their vehicle. The system often provides multiple viewing options that drivers can switch between depending on their specific needs.
Many systems now include helpful features like dynamic parking lines that move with your steering wheel and zoom functions for examining particular areas more closely. These thoughtful touches make the technology significantly more useful in real-world driving situations.
Benefits for Drivers and Safety
The primary advantage of surround view systems becomes immediately apparent when parking in congested areas. They virtually eliminate the guesswork involved in judging distances to curbs, other cars, or obstacles. This proves especially helpful for larger vehicles where traditional mirrors might leave significant blind spots.
Studies have shown these systems can reduce low-speed collisions by up to 30%, making them one of the most effective passive safety features available today. They provide particular benefits for spotting small children or pets that might be in a vehicle's immediate vicinity but out of the driver's normal line of sight.
Technological Advancements and Future Trends
As camera technology continues advancing, we're seeing surround view systems with higher resolutions and faster processing speeds. Some luxury vehicles now incorporate predictive features that can anticipate potential collision points based on the vehicle's movement and surrounding objects.
The next evolution will likely involve deeper integration with other vehicle systems, potentially allowing the car to automatically brake if it detects an imminent collision while maneuvering at low speeds. Some prototypes even experiment with augmented reality overlays that could highlight potential hazards in real-time.
Interpreting the Surround View Monitor Display
Understanding the Different Icons
The surround view monitor interface uses various symbols to communicate important information. These visual indicators help drivers quickly assess their surroundings without needing to interpret complex data. Most systems use color-coding - typically progressing from green to yellow to red - to indicate how close objects are to your vehicle.
Some systems incorporate animated elements that become more intense as you approach an object, providing clear visual feedback about your proximity to potential hazards. Taking time to learn these symbols during daylight hours in a controlled environment will help you recognize them instantly when you need them most.
Understanding the Bird's-Eye View
The signature feature of these systems - the synthetic overhead perspective - works by digitally combining feeds from all cameras. This creates the illusion of viewing your car from about ten feet above, making spatial relationships much easier to understand than traditional mirror views. The system automatically adjusts this view as you steer, showing where your car will move based on your current wheel position.
This perspective proves invaluable when parallel parking, as it clearly shows your relationship to both the curb and other vehicles. Many drivers find they can park with precision they never thought possible after becoming comfortable with this view.
Interpreting the Parking Guidance
Most modern systems include intelligent parking assist that does more than just show your surroundings. When you engage these features, the system typically highlights potential parking spaces and provides visual guides showing exactly how to steer into them. Some will even control the steering for you while you manage the pedals.
The most advanced versions can recognize both parallel and perpendicular parking opportunities, automatically measuring spaces to determine if your vehicle will fit. These systems continuously update their guidance as you move, making corrections much easier than trying to follow static parking lines.
Recognizing Potential Obstacles
Modern surround view systems have become remarkably good at identifying different types of obstacles. Many can now distinguish between stationary objects (like poles or walls) and moving hazards (like pedestrians or shopping carts). Some will even prioritize warnings based on what poses the greatest immediate danger.
The system typically uses distinct visual and audible alerts for different threat levels, with the most urgent warnings appearing directly in your line of sight. Learning these warning patterns helps drivers react appropriately without becoming overwhelmed by unnecessary alerts during normal driving.
Troubleshooting Common Issues
Like any technology, surround view systems can occasionally experience glitches. The most common issues usually stem from camera lenses becoming dirty or obstructed. A quick wipe with a soft cloth often resolves these problems. In colder climates, accumulated snow or ice can temporarily block cameras until cleared.
If the system displays distorted images or fails entirely, checking fuse connections might solve electrical issues. For persistent problems, most manufacturers recommend professional service to ensure proper camera alignment and software calibration - critical factors for system accuracy.
